A false ceiling is only as good as the frame behind it. Alunova makes strong, durable galvanised steel ceiling frames that give your false ceiling the support it needs — and help it stay straight, stable and long-lasting.
Built in India. Made for homes, offices and commercial spaces.
The frame may not be the part of the ceiling you see. But it is the part that holds everything together.
Manufactured by Raj Ceiling Solutions, Alunova was established in December 2025 with a simple vision: to bring dependable quality, precision and strength to the framework behind every false ceiling.
We manufacture gypsum false ceiling channels and framing systems for residential and commercial spaces, combining quality raw materials, precise manufacturing and consistent performance.
Currently serving customers across Gujarat, Alunova is expanding its presence across India with a commitment to make quality false-ceiling frameworks more accessible and dependable.
4components in the system
0.35mm minimum thickness
3660mm standard length
Why choose Alunova?
Strong where it matters.
Our galvanised steel ceiling frames are designed to be:
Rust Resistant
Made from galvanised steel to help protect against rust and corrosion.
Strong & Reliable
Up to 10% higher load-carrying capacity than conventional sections, designed to support gypsum boards and ceiling fixtures securely.
Fire Resistant
Steel does not burn, making it a suitable material for ceiling framing.
Termite Resistant
Unlike wood, steel is not affected by termites.
Lightweight
Easy to handle, transport and install on site.
Long Lasting
Built to maintain its strength and shape for years.
Easy to Install
Precisely manufactured for easier cutting, fitting and installation.
Consistent Quality
Every piece is made to consistent specifications for a more reliable installation.
Weather Resistant
Suitable for spaces exposed to humidity and changing temperatures.
Recyclable
Steel can be recycled, making it a practical choice for more sustainable construction.
The material matters
Why GI steel, not aluminium.
Alunova channels are made from galvanised iron (GI), not aluminium. Here's what that choice actually buys you.
Strength of sections
GI is around three times denser than aluminium and has a much higher Young's modulus, which means higher strength and better screw retention.
Density: GI 8050 kg/m³ vs aluminium 2700 kg/m³
Fire performance
GI has a much higher melting point and lower thermal conductivity than aluminium, giving it a meaningfully better fire rating.
Melting point: GI 1500°C vs aluminium 650°C
Screw retention
GI is stiffer and less malleable than aluminium, so screws bite in and hold firm under repeated loading.
Higher stiffness, better cyclic-load performance
Cost to strength
Matching GI's strength in aluminium needs more material, which raises cost without matching the performance. GI delivers more strength for the price.
Better strength-to-cost ratio
Built on quality, designed for precision
Our manufacturing process.
We use premium Tata Steel GI coils as our raw material, and every channel goes through quality inspection before it reaches a customer.
01
Raw Material Quality Check
We begin with quality-checked GI raw material sourced from premium Tata Steel coils.
02
Precision Roll Forming
The raw material goes through a controlled roll-forming process to achieve the required profile and dimensions.
03
Automated Manufacturing
Our manufacturing operations are designed around automation and process efficiency to maintain consistency and reduce variation.
04
Quality Inspection
Every finished channel is inspected for quality and dimensional consistency. Products that don't meet our requirements are rejected.
05
Systematic Packing
Channels are packed in bundles of 20 pieces for easier handling and transportation, with proper product identification and labelling.
06
Safe & Reliable Dispatch
Finished products are dispatched through authorised transport partners to support safe and timely delivery.

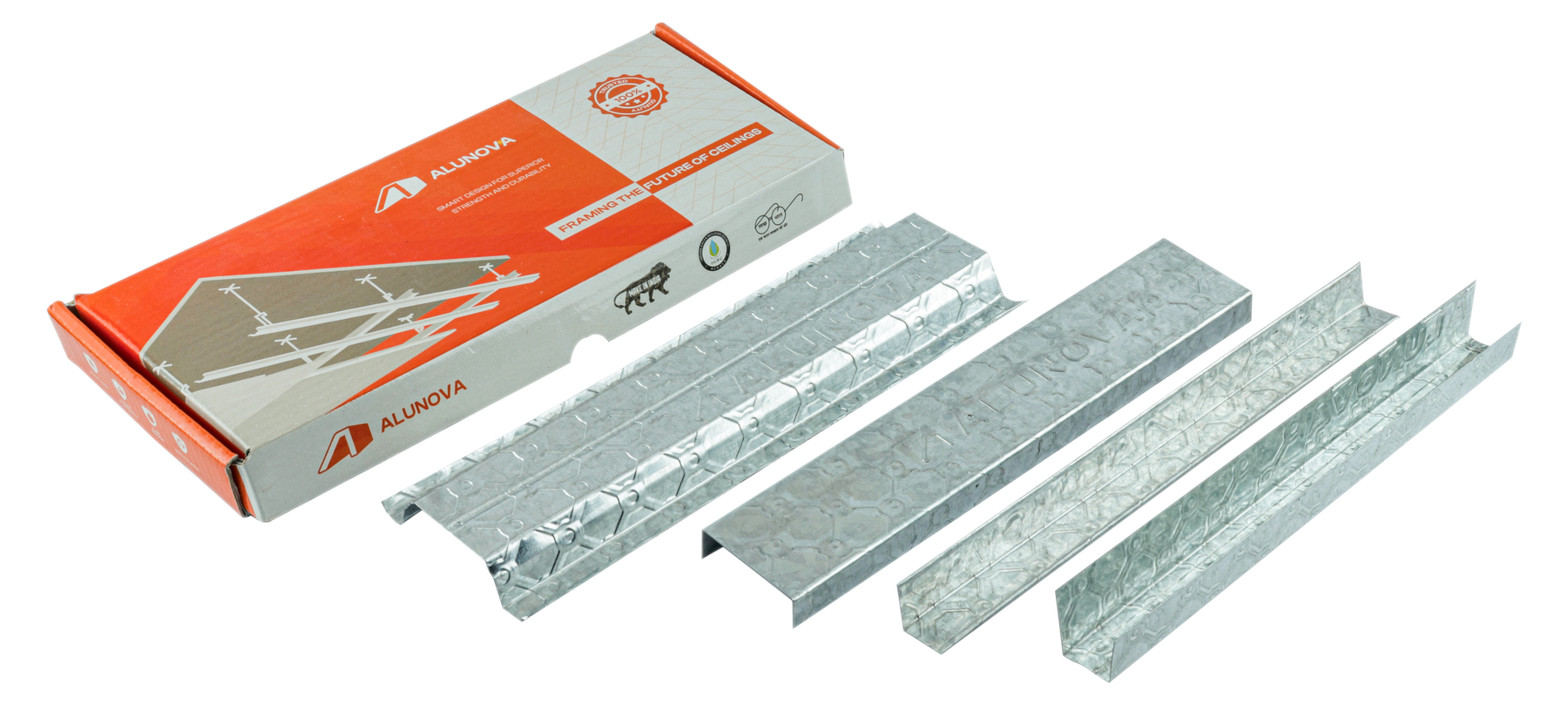

The Alunova system
Everything you need to build a strong ceiling frame.
The Alunova system consists of four essential components.
01

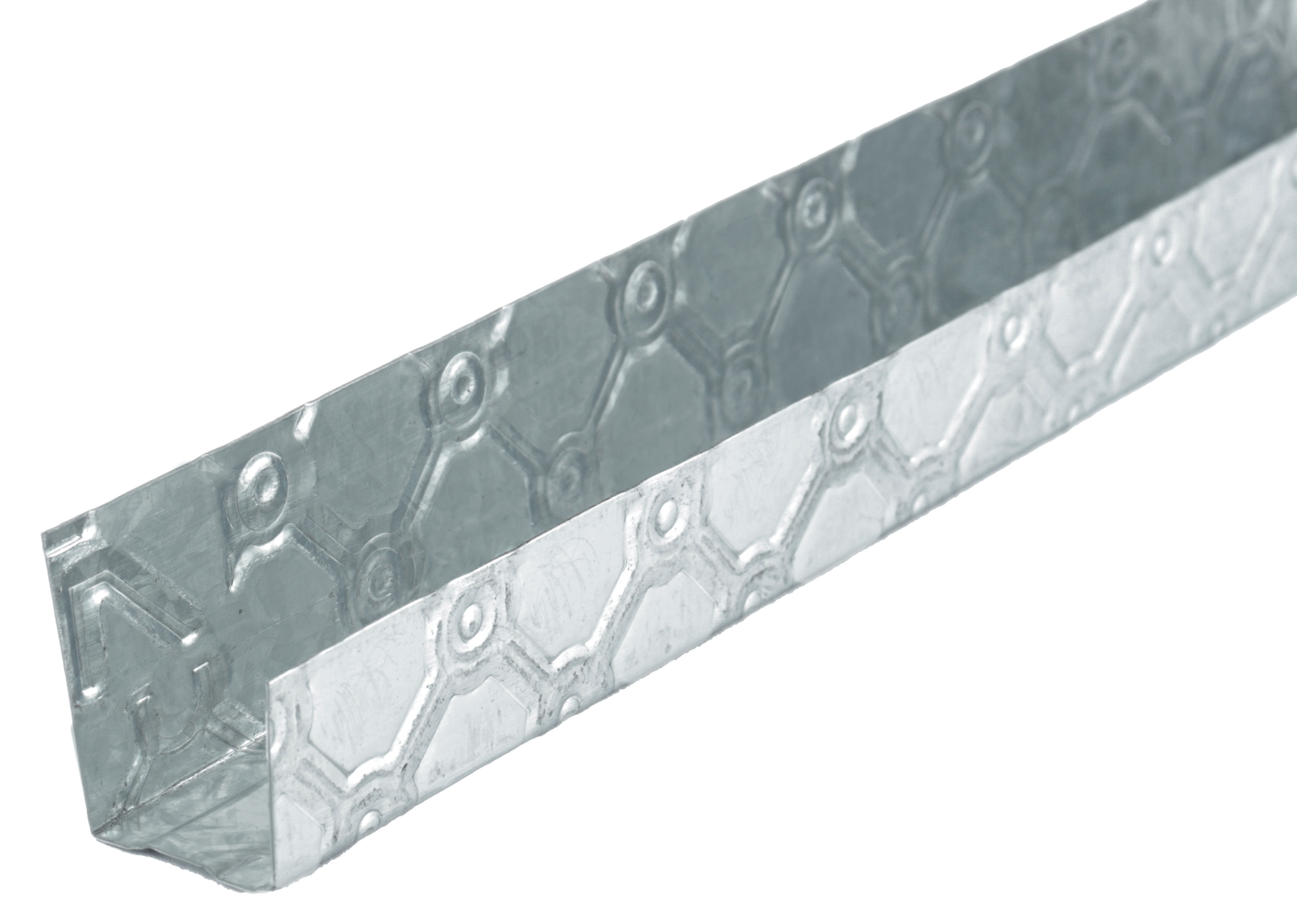

Perimeter Channel
Runs along the walls to form a secure perimeter framework, ensuring precise edge alignment and structural support for the ceiling.
Classic
0.35 mm
Prime
0.40 mm
Length
2440 mm & 3660 mm
02

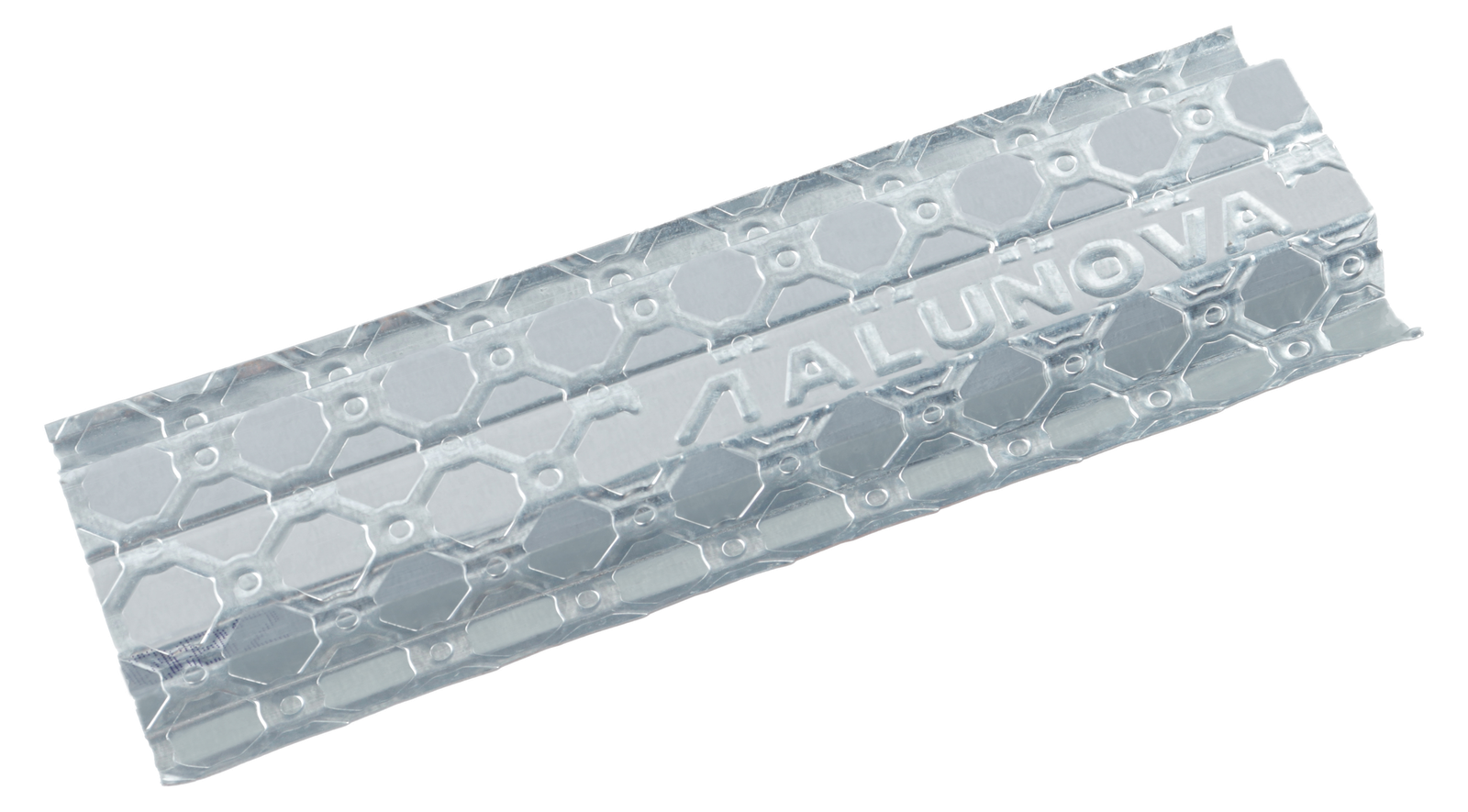

Ceiling Section
The primary load-bearing member for fixing gypsum board, with a knurled surface that helps provide a better grip when fixing screws.
Classic
0.35 mm
Prime
0.40 mm
Length
2440 mm & 3660 mm
03

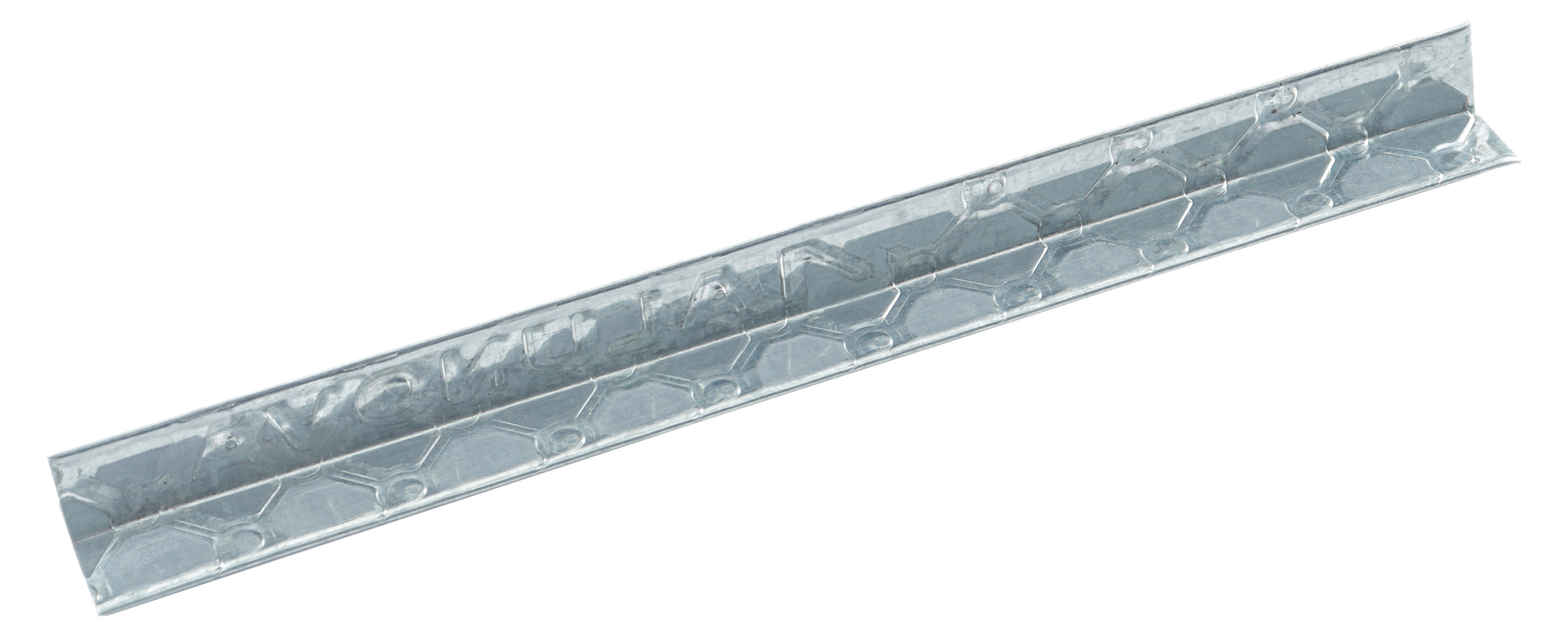

L Angle
Used for edge reinforcement around the ceiling, delivering added strength and a clean, sharp finish to panel installations.
Classic
0.35 mm
Prime
0.40 mm
Length
2440 mm & 3660 mm
04

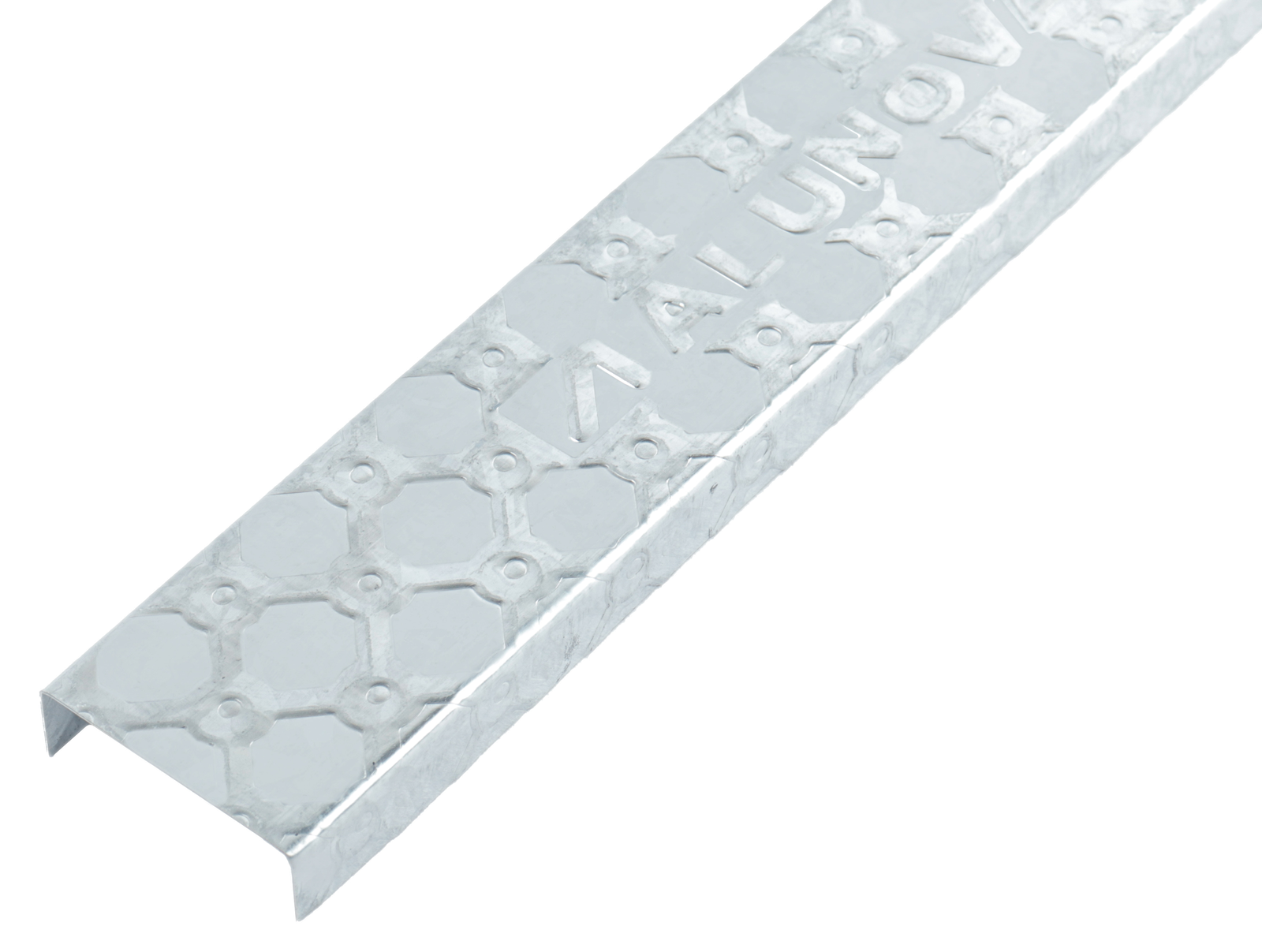

Intermediate Channel
Forms the main suspended grid, enhancing rigidity, alignment and overall stability of the ceiling framework in heavier gauges for additional strength.
Classic
0.45 mm
Prime
0.50 mm
Length
2440 mm & 3660 mm
Need a different length?
Custom lengths can be supplied based on your project requirements. Send us your measurements and we'll help you work out what you need.
Every Alunova channel is made in two thicknesses, so you can match the frame to the project. Both ranges use the same four components and the same standard lengths.
Alunova Classic
The 0.35 mm range
Our economical range, built for cost-conscious projects without giving up on manufacturing consistency.
Alunova Classic specifications
Channel
Profile (mm)
Thickness
Perimeter Channel
20 × 17 × 27
0.35 mm
Ceiling Section
16 × 74 × 16
0.35 mm
L Angle
21 × 21
0.35 mm
Intermediate Channel
14 × 45 × 14
0.45 mm
Alunova Prime
The 0.40 mm range
Our standard market range — the balance of quality, strength, precision and value.
Alunova Prime specifications
Channel
Profile (mm)
Thickness
Perimeter Channel
20 × 17 × 27
0.40 mm
Ceiling Section
16 × 74 × 16
0.40 mm
L Angle
21 × 21
0.40 mm
Intermediate Channel
14 × 45 × 14
0.50 mm
Profile widths shown are the channel's web and flange dimensions in millimetres. All channels are supplied in 2440 mm & 3660 mm standard lengths.
Not sure which range suits your project, or need a different length?
Custom lengths can be supplied based on your project requirements. Send us your measurements and we'll help you decide and work out what you need.
Alunova ceiling frames can be used in a wide range of projects.

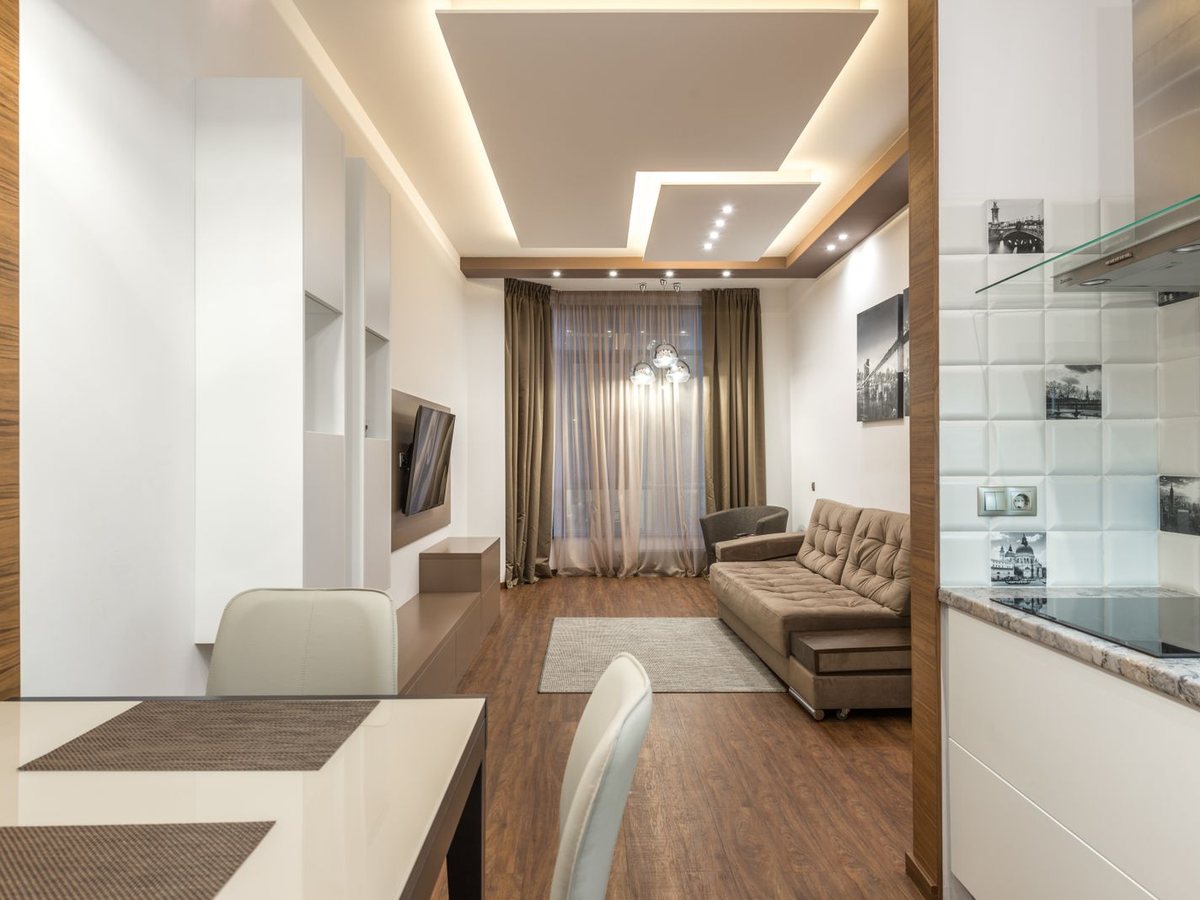

Homes & ApartmentsFor living rooms, bedrooms, kitchens and other residential spaces.

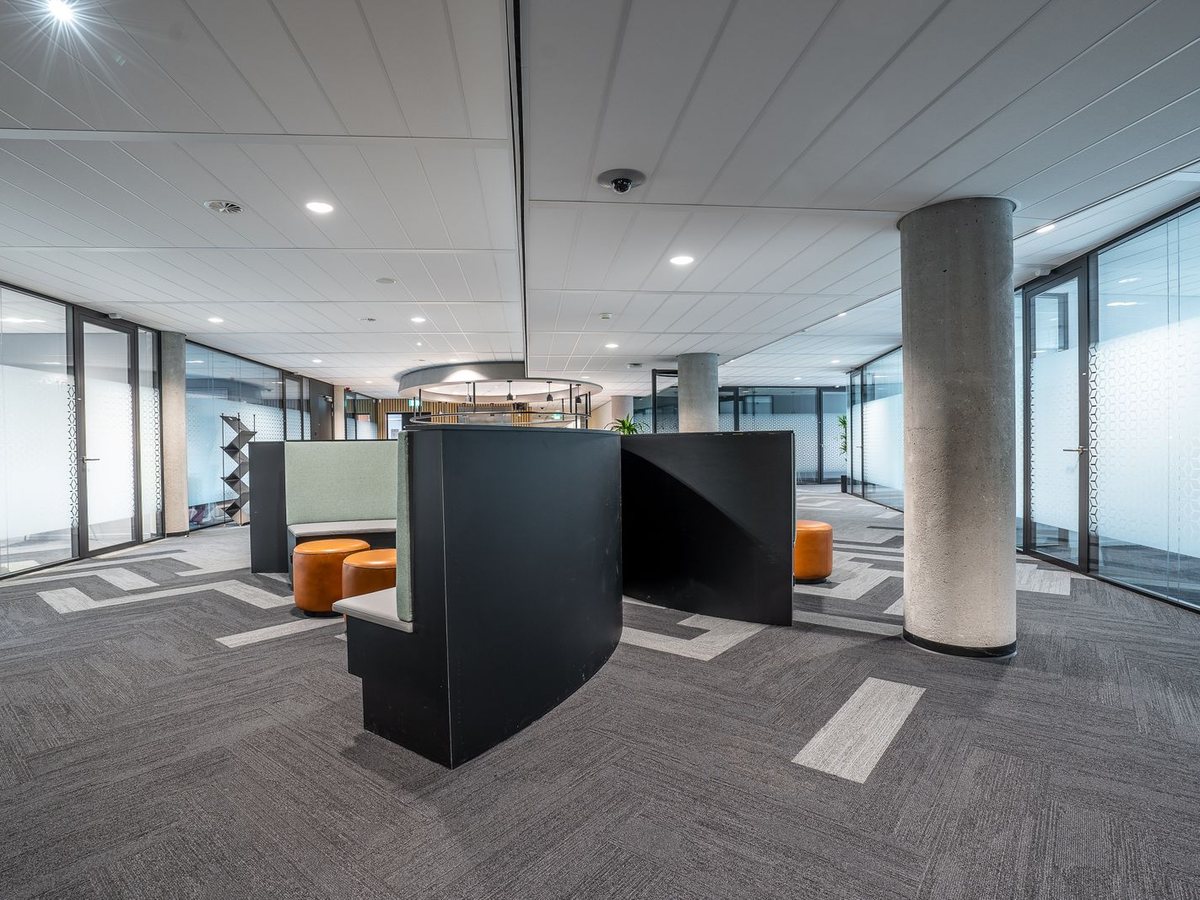

OfficesFor workspaces, meeting rooms and commercial interiors.

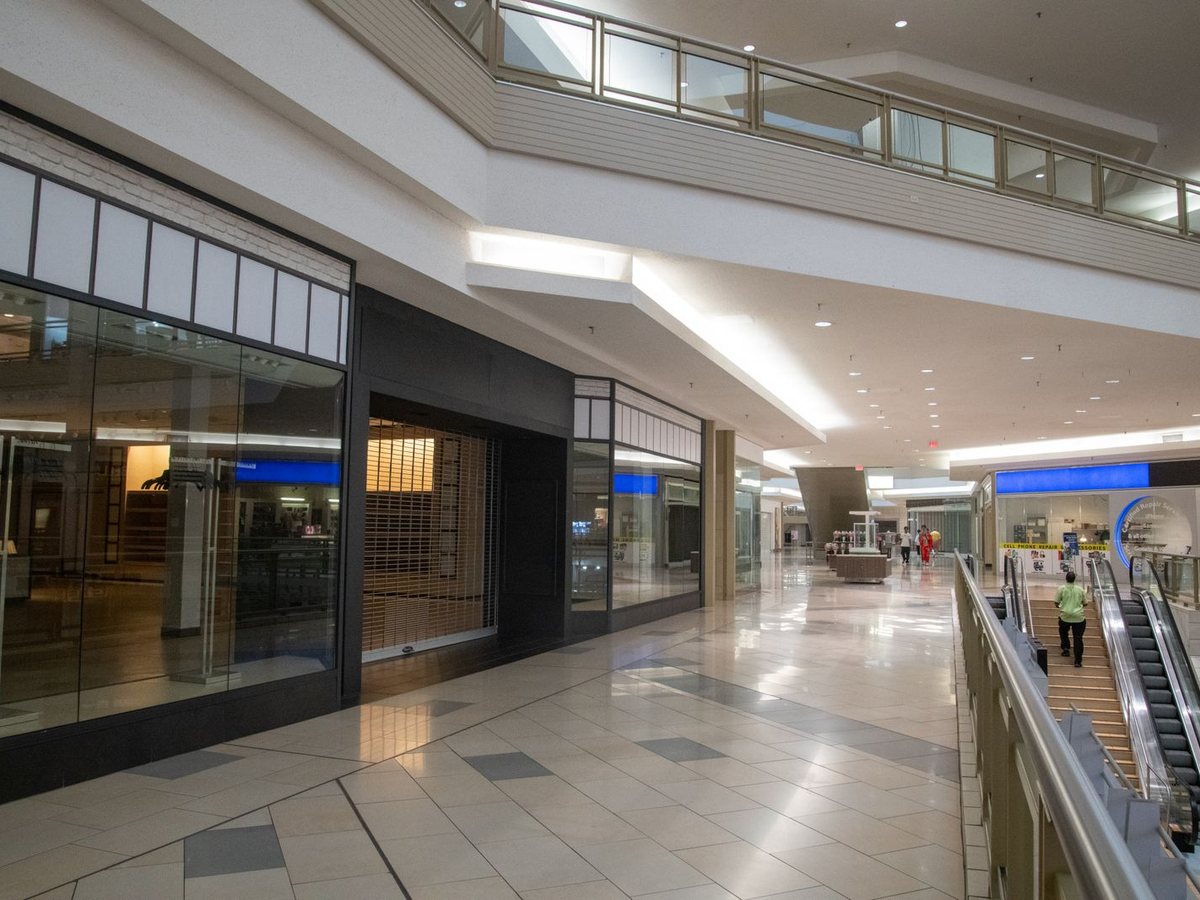

Retail ShowroomsFor shops and showrooms that need a clean, finished ceiling.

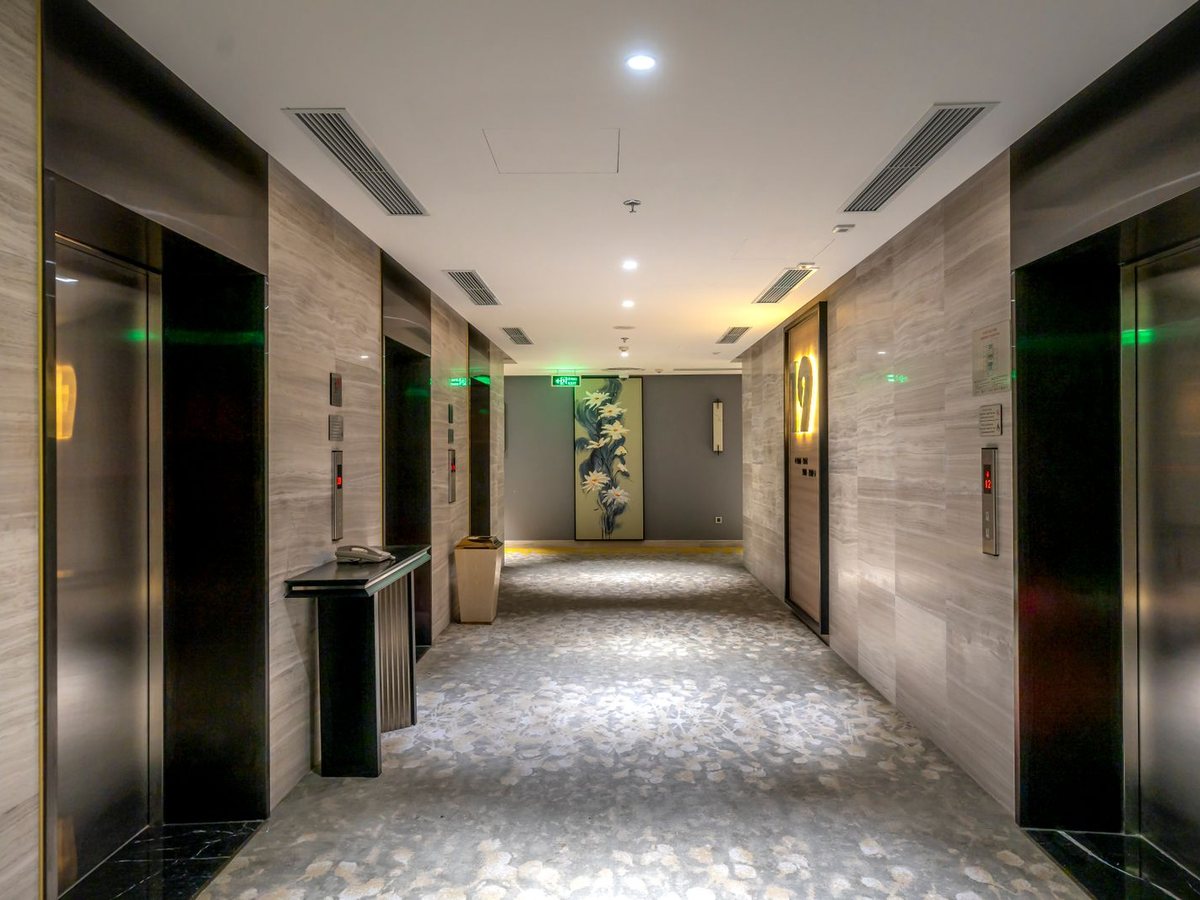

Hotels & HospitalityFor hotels, restaurants and other hospitality spaces.

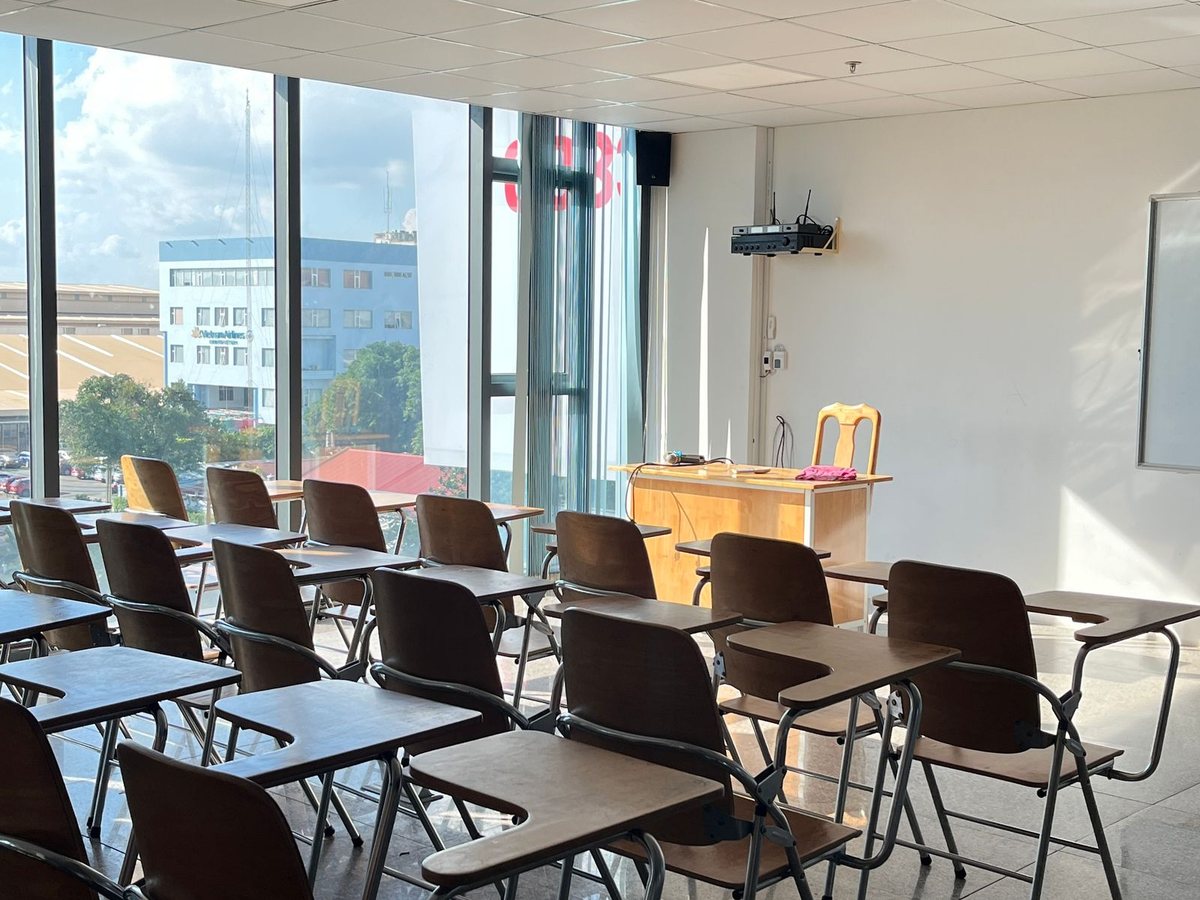

Educational InstitutionsFor schools, colleges and other learning spaces.

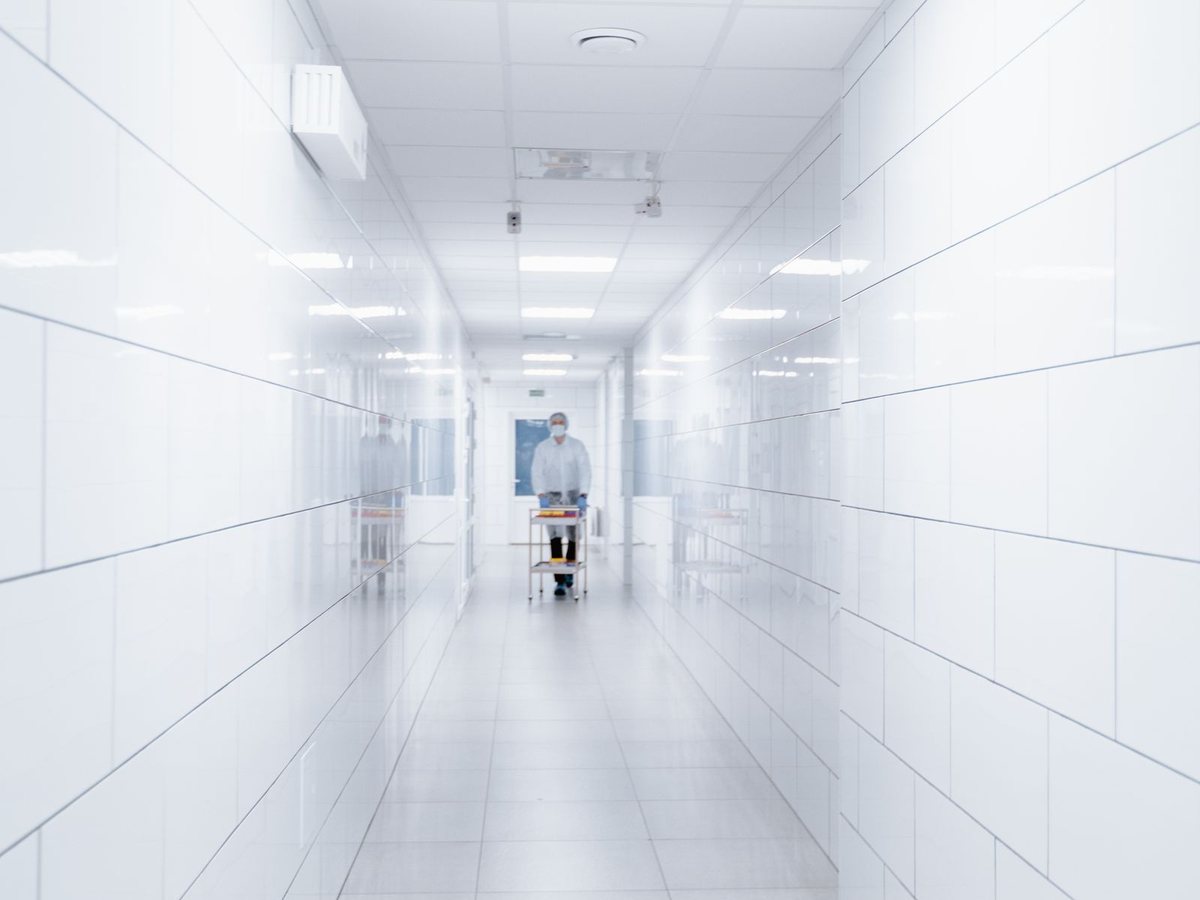

Healthcare FacilitiesFor hospitals, clinics and healthcare environments.
Made for the people who build
Simpler framing, on every project.
Whether you're working on a single home or a large commercial project, Alunova is designed to make ceiling framing simpler and more reliable.
Homeowners
Contractors
Interior Designers
Architects
Builders
Project Developers
Engineered around what matters
Built on quality. Designed for precision.
Every Alunova channel is manufactured with attention to the factors that matter when it comes to false-ceiling frameworks.
Quality
We focus on quality raw materials and controlled manufacturing processes.
Precision
Consistent dimensions help ensure smoother installation and dependable framework performance.
Strength
Our sections are engineered to carry up to 10% more load than conventional profiles, so the framework provides the structural support the application needs.
Value
We aim to provide the right balance between product quality and price, so customers get better value from their investment.
Availability
A good product is only useful when it's available when the project needs it — we work towards dependable supply.
Our vision is simple: to provide quality in every inch and every millimetre of the hidden framework behind a false ceiling.
When someone says, “False ceiling karna hai,” we want them to say, “Alunova lagana hai.”
Because while the framework may remain hidden, the confidence it creates should never be.
Questions?
We've got the answers.
Anything else — send us a message on WhatsApp.
What does the Alunova system include?
The system includes four components: Perimeter Channel, Ceiling Section, L Angle and Intermediate Channel.
What thicknesses are available?
Perimeter, Ceiling Section and L Angle are available in 0.35 mm and 0.40 mm.
Intermediate Channel is available in 0.45 mm and 0.50 mm.
What lengths are available?
Standard lengths are 2440 mm and 3660 mm.
Custom lengths can also be supplied based on your requirements.
Where can Alunova frames be used?
They can be used in homes, offices, retail spaces, hotels, educational institutions, healthcare facilities and other interior projects.
Can I get a custom size?
Yes. Tell us the sizes and quantities you need and we'll help you with the requirement.
How do I get a quote?
Simply send us your requirements, measurements or even a photo of your ceiling drawing. We'll get back to you with the details.
What is the role of metal framing in a false ceiling?
Metal framing is the backbone of a false ceiling — it carries the load of the whole system, so good-quality framing is what makes a ceiling strong and long-lasting.
Alunova frames are made from galvanised iron (GI), which doesn't burn. Ceilings can be designed for up to 2 hours of fire resistance, something wood, timber or aluminium framing can't match — wood burns, and aluminium melts at a much lower temperature than GI.
What's special about Alunova frames?
Alunova sections are made from GI sourced only from reputed steel manufacturers, and every batch goes through stringent quality checks for consistent performance. Some of our metal-forming processes are patent-pending, built to give you better value.
Can I hang lights or AC ducts from the ceiling?
Alunova metal ceiling systems are designed to carry the weight of gypsum board and small light fixtures.
AC ducts shouldn't be hung from Alunova framing, though — they're not designed for that load, and the vibration from a duct can carry through to the ceiling.
Will the metal framing corrode?
Our framing is protected with a zinc or alu-zinc coating — always check the coating thickness before you buy. Both Alunova Prime and Alunova Classic are coated for strong corrosion protection, built to last.
Have a ceiling project?
Tell us what you're building.
You don't need to figure out every component yourself. Send us:
Your ceiling drawing
Required sizes
Quantities
Project details
Or simply send us a photo of your drawing on WhatsApp. We'll help you work out the right Alunova products for your project.
